朝林科技——CCD在线自动锁螺丝机

发表时间:2022-04-29 08:56

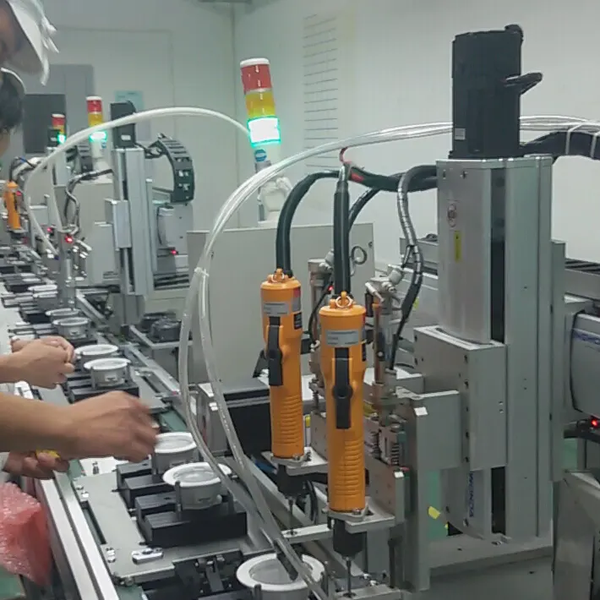

CCD在线自动锁螺丝机

CCD online automatic lock wire machine



功能特点:

1.CCD视觉定位控制,在锁付高精密度产品螺丝时通过摄像定位,调整螺丝锁付精度,确保螺丝锁付的精确;

2. 具有不限定产品螺丝锁付数量(最大可以达到1000颗) ;

3.具有自动读取产品CAD的XY坐标点或者直接读取Gerber资料获得XY坐标点针对螺丝数量多的产品;

4.具有图形显示不良点螺丝位置;解决因产品螺丝过多显示螺丝编号不易于找到不良点螺丝位置;

5.具有智能检测功能,可检测漏锁、浮锁、滑牙等;

6.通用性强,更换螺丝输送模组、吸嘴、批头可适应M1.0- M4.0的螺丝锁附;


Features:

1. CCD visual positioning control, adjust the screw locking accuracy through camera positioning when locking high-precision product screws to ensure the accuracy of screw locking;

2. Unlimited number of product screw locks (up to 1000 pieces);

3. It can automatically read XY coordinate points of product CAD or directly read Gerber data to obtain XY coordinate points for products with a large number of screws;

4. It has a graphic display of the screw position of the bad point; it is not easy to find the screw position of the bad point due to the excessive display of the screw number of the product;

5. With intelligent detection function, it can detect missing locks, floating locks, slippery teeth, etc.;

6. Strong versatility, replacing screw conveying modules, suction nozzles and batch heads can adapt to M1.0-M4.0 screw locking;
